Cournand-Style Needles
SELDINGER "ARTERIAL" NEEDLES - SOLID STYLET
Disposable access needle typically used in the introduction of a guide wire into the vasculature. Our clear polycarbonate construction coupled with smooth glide funnel allows for trouble-free guide wire insertion. (Non-sterile needles also available.)

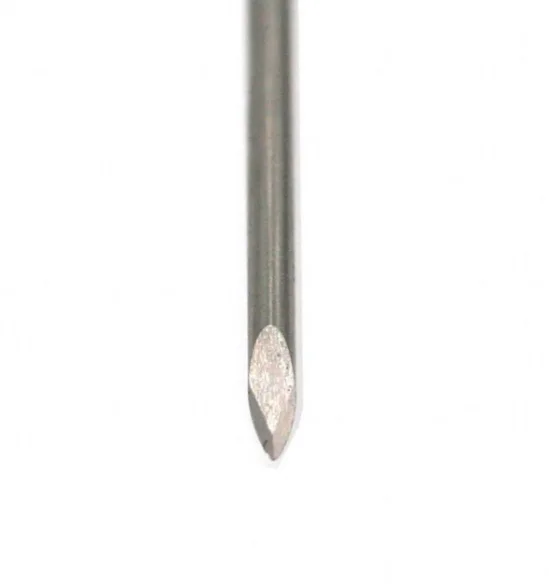

55-1828 tip. Click for detail.

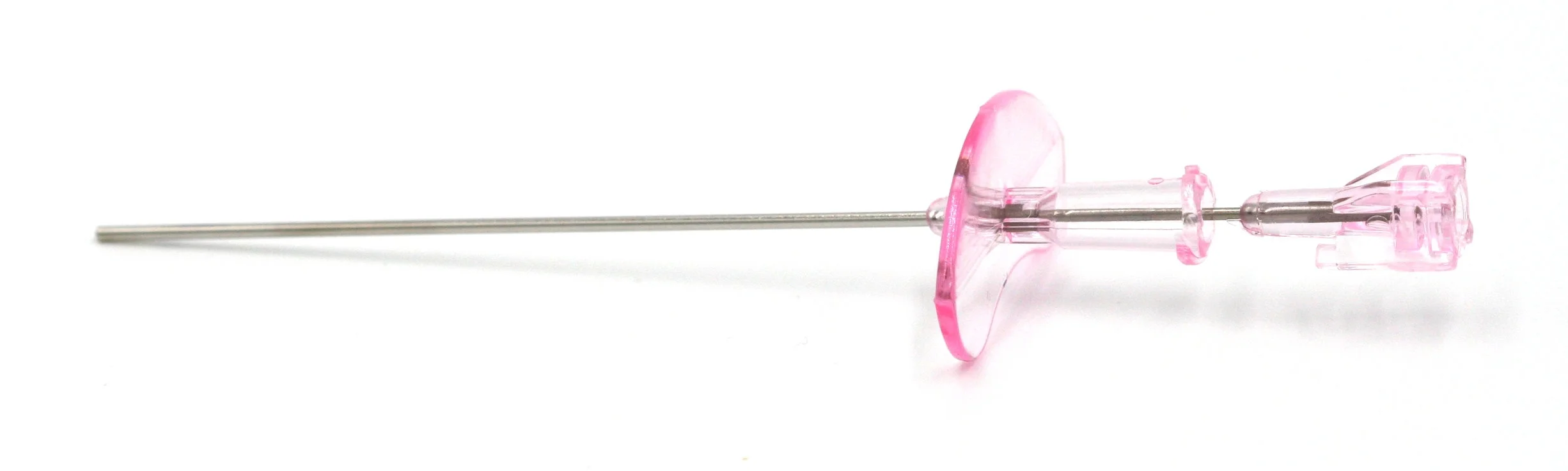

55-1828 shown. Click for detail.
18G NEEDLES - packaged in boxes of 25
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | Obturator | |
| Cm. | In. | |||||
| 55-1829 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | No |
| 55-1828 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | Yes |
MODIFIED SELDINGER "ARTERIAL" NEEDLES, HOLLOW STYLET
Modified Seldinger Needle is a blend of the Potts Cournand point configuration and the Original Seldinger Needle large plate. For that blending reason, the Modified Seldinger are also known as Hollow Stylet Seldinger Needles. Our clear polycarbonate construction coupled with smooth glide funnel allows for trouble-free guide wire insertion.

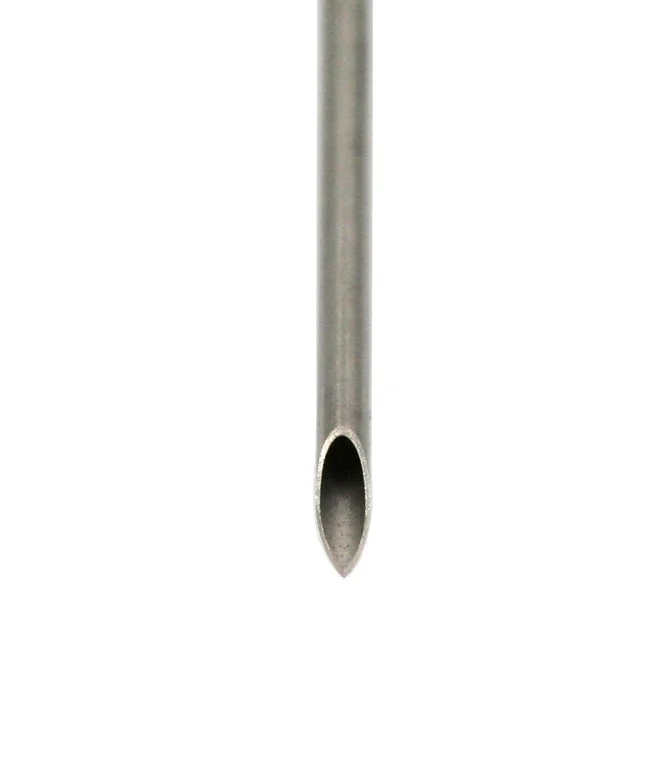

50-1827 tip. Click for detail.

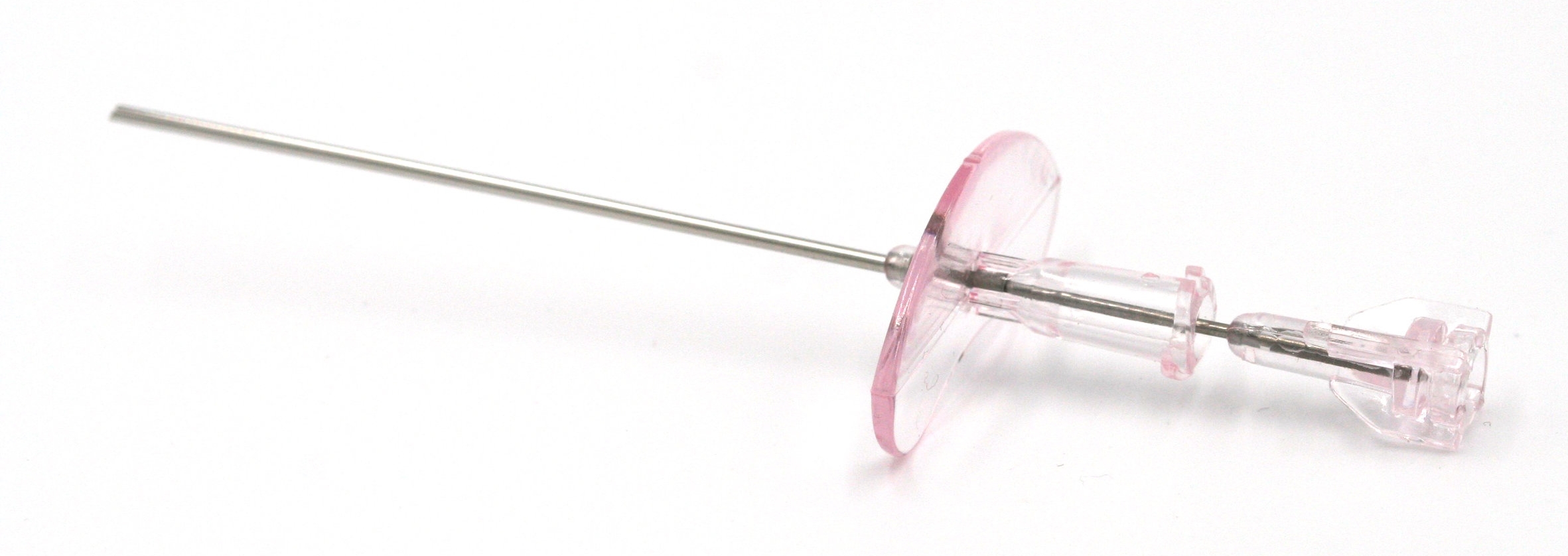

50-1822 shown. Click for detail.
Note: All needles listed below are packaged in boxes of 25 except for 50-1830, 50-1835, and 50-1840. 50-1830, 50-1835, and 50-1840 are package in boxes of 10.
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | Obturator | |
| Cm. | In. | |||||
| 50-1822 | Pink | 18g | 5.7 | 2-1/4 | .035/.038 | No |
| 50-1823 | Pink | 18g | 5.7 | 2-1/4 | .035/.038 | Yes |
| 50-1827 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | No |
| 50-1828 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | Yes |
| 50-1830 | Pink | 18g | 7.6 | 3.0 | .035/.038 | No |
| 50-1835 | Pink | 18g | 9.0 | 3-1/2 | .035/.038 | No |
| 50-1840 | Pink | 18g | 10.2 | 4.0 | .035/.038 | No |
