Cournand-Style Needles

ONE-PART SELDINGER NEEDLES WITH KIDNEY PLATE

Cardiac Catheterization Needles are designed with a Large Kidney Plate with a transparent polycarbonate hub and a very sharp "B" type Arterial Bevel. Our clear polycarbonate construction coupled with our smooth glide funnel allows for trouble-free guide wire insertion.  (Non-sterile needles also available.)

51-1827 tip. Click for detail.

51-1827 shown. Click for detail.

18G NEEDLE - packaged in boxes of 25

ReOrder# Hub Color Gauge Size Length Accepts Guide Obturator
Cm. In.
51-1815 Pink 18g 3.8 1-1/2 .035/.038 No
51-1822 Pink 18g 5.7 2-1/4 .035/.038 No
51-1827 Pink 18g 7.0 2-3/4 .035/.038 No
51-1835 Pink 18g 9.0 3-1/2 .035/.038 No

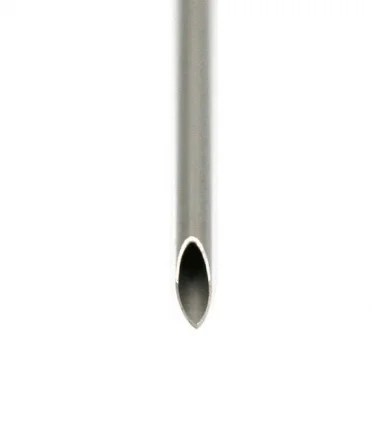

51-1835-P tip. Click for detail.

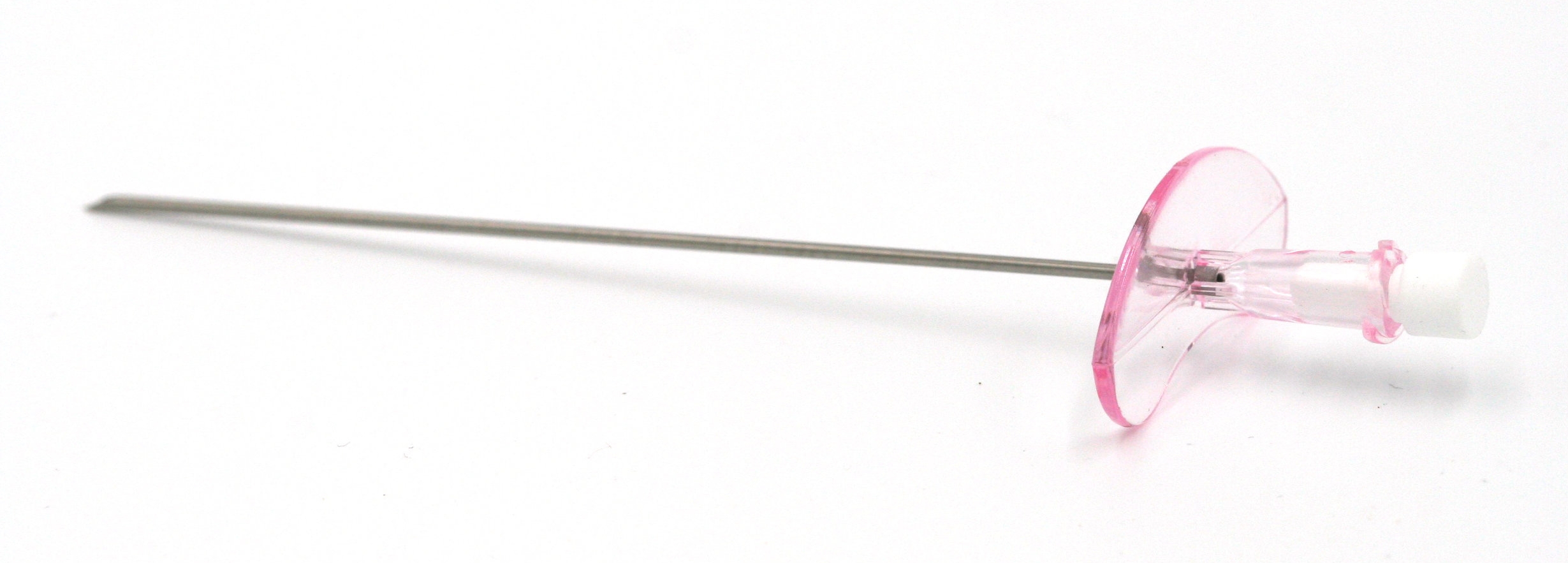

 51-1835P. Click for detail.

51-1835P. Click for detail.

18G NEEDLE WITH POROUS PLUG - packaged in boxes of 25

ReOrder# Hub Color Gauge Size Length Accepts Guide Obturator
Cm. In.
51-1815P Pink 18g 3.8 1-1/2 .035/.038 No
51-1822P Pink 18g 5.7 2-1/4 .035/.038 No
51-1827P Pink 18g 7.0 2-3/4 .035/.038 No
51-1835P Pink 18g 9.0 3-1/2 .035/.038 No
